Think of your sunken concrete driveway or patio. Now, what if you could give it a 'structural airbag' to lift it right back where it belongs, all without the mess and expense of a complete tear-out? That’s exactly what polyurethane foam injection concrete lifting does. It’s a modern approach to fixing those frustrating sunken driveways, uneven patios, and cracked interior floors by lifting and stabilizing the slab from underneath.
What Exactly Is Polyurethane Foam Concrete Lifting?
When the ground beneath a concrete slab shifts or washes away, it leaves behind empty pockets, or voids. Without solid support, that heavy slab of concrete is bound to sink and crack. This is a constant battle for homeowners across North Texas, thanks to our notorious expansive clay soil that swells up when it's wet and shrinks dramatically when it's dry.
Polyurethane foam injection is the direct counter-attack to this problem. The process is surprisingly clean. We start by drilling a few small, dime-sized holes through the sunken slab. Then, using specialized equipment on our truck, we inject a two-part liquid polymer into the voids below.
The Science Behind the Lift
This is where the real work begins, and it happens fast. As soon as the two liquids are injected, they mix and trigger a chemical reaction, causing them to expand into a rock-solid, high-density foam. It’s a bit like spray foam insulation, but engineered to be incredibly strong and durable.
This rapid expansion does three things at once:
- Fills Voids: The foam expands aggressively, filling every last gap and crevice under the slab. This ensures there's complete, solid support.
- Compacts Soil: As it expands, the foam also pushes down, compacting any loose soil underneath it. This creates a brand-new, super-stable foundation for your concrete.
- Lifts the Slab: Once the voids are filled and the soil is compacted, the foam's continued expansion creates a powerful but gentle lifting force, raising the concrete back to its original level.
Polyurethane foam injection is more than just a lift; it's a permanent stabilization solution. By filling voids and densifying the underlying soil, it addresses the root cause of the settling, not just the symptom.
The whole process is incredibly precise. Our trained technicians can control the lift with pinpoint accuracy, often bringing a slab back to within a fraction of an inch of where it's supposed to be.
To give you a better sense of how this all comes together, here's a quick summary.
Quick Overview of Polyurethane Foam Injection
| Feature | Description | Benefit for DFW Homeowners |
|---|---|---|
| Material | Two-part, high-density polyurethane polymer | Lightweight but incredibly strong; won't add extra weight to unstable soil. |
| Process | Injection through small, dime-sized holes | Minimally invasive, clean, and fast. No major excavation needed. |
| Action | Expands to fill voids, compact soil, and lift the slab | Directly addresses the cause of sinking (voids) and provides immediate results. |
| Cure Time | Reaches 90% strength in about 15 minutes | The repaired area is ready for use almost immediately after the job is done. |
This method truly provides a comprehensive fix, which is why its popularity has skyrocketed.
The global market for this technology hit USD 2.13 billion in 2024, and North America is the biggest user, making up about 45% of that market. For property owners here in Dallas–Fort Worth, that massive adoption just confirms what we already know: this is a trusted, go-to solution for concrete repair. You can read more about these market trends for concrete lifting solutions and their impressive growth.
The Secret Behind the Lift: How Foam Lifts Concrete
So, how does a simple liquid suddenly become strong enough to lift thousands of pounds of solid concrete? The magic is all in a powerful and incredibly fast chemical reaction. This isn't just about filling a void under your slab; it’s about completely re-engineering the ground it sits on.
Think of it like high-tech baker's dough. A baker mixes a few ingredients, and the yeast creates gas bubbles that make the dough rise. We do something similar, but on a much more powerful scale. Our process starts with two separate liquid polymers, kept apart until the exact moment they’re needed.
When we inject them beneath your concrete, these two liquids meet and a chemical reaction kicks off instantly. This isn't a slow ooze—it's a rapid expansion that creates a dense, rigid, and unbelievably strong structural foam.
It All Happens in a Two-Part Chemical Reaction
The sheer lifting power comes from the foam's explosive expansion. It creates what’s known as a closed-cell polymer, which is just a technical way of saying it's made of tiny, individual bubbles that don't absorb water once cured. This is crucial because it means you get a permanent, waterproof solution that won’t degrade.
The reaction is engineered for both speed and brute strength. The foam doesn't just passively fill the space. It expands with force, seeking out the path of least resistance to fill every hidden crack and void. Only after those gaps are completely filled does the real lifting start.
The real strength of this technology is its dual-action capability. It doesn't just raise your concrete; it simultaneously compacts the underlying soil, creating a denser, more stable base that prevents future settling.
Once the voids are sealed, the expanding foam has nowhere else to go but up. This creates immense, evenly distributed pressure against the bottom of the slab, gently and precisely lifting it back into place. Our technicians can control this lift with incredible accuracy, making real-time adjustments to get a perfectly level surface.
From Liquid to Lift in Seconds
One of the biggest advantages is how fast this all happens. The foam expands 15 to 20 times its liquid volume in mere seconds and is fully expanded in just 30 to 60 seconds. This lightning-fast reaction generates tremendous upward pressure, reaching 50 to 100 PSI (pounds per square inch). That force is channeled straight up, giving us the hydraulic lift we need to achieve accuracy within 1/8-inch. You can learn more about the science of foam expansion and see just how it works.
This quick-cure process means your property is back to normal almost immediately. You can walk on a treated sidewalk in minutes and drive on a lifted driveway later the same day—no waiting for days on end.
This is just one of the modern solutions we have in our toolkit. To get a bigger picture, you can read also about other foundation repair technology used in Dallas-Fort Worth.
Why This Foam is Perfect for the Job
A few key properties make polyurethane foam the best choice for lifting concrete, especially with the notorious clay soils we have here in North Texas.
- It’s Strong, Not Heavy: The cured foam is incredibly strong, but it adds almost no weight to the soil below—typically just 2-4 pounds per cubic foot. This is a huge advantage over heavy mudjacking slurry, which can actually make the problem worse by further compressing weak soil.
- It’s Waterproof: Once cured, polyurethane is hydrophobic, meaning it actively repels water. This creates a permanent barrier against moisture, preventing the underground erosion that causes soil to wash out in the first place.
- It Lasts a Lifetime: This isn't a temporary patch. The high-density foam we use won't break down, rot, or wash away. It becomes a permanent, stable part of the ground, ensuring your concrete stays put for good.
Walking Through Your Concrete Lifting Project
Knowing what to expect can take a lot of the stress out of any home repair. While polyurethane foam injection concrete lifting is definitely a job for the pros, understanding how it works from start to finish can make the whole thing feel much more manageable. It really highlights just how clean and efficient this method is, especially when you compare it to older, messier techniques.
So, let's walk through what a typical project looks like, from the first handshake to the final cleanup. This way, you’ll feel confident and in the loop at every stage.
The Initial Inspection and Assessment
It all starts with a detailed look at your property. This isn't just a quick glance at a sunken slab; it's a full diagnostic checkup to figure out what’s really going on. A trained specialist will come out to your home to inspect the concrete, pinpoint why it's settling, and map out the empty spaces (voids) hiding underneath.
During this visit, the expert will:
- Measure the Settlement: They use precise tools to determine exactly how much the concrete has dropped.
- Identify Contributing Factors: They'll hunt for the root cause—things like poor drainage, invasive tree roots, or soil erosion that started the whole problem.
- Map Out the Injection Plan: Using their findings, they'll create a game plan, marking the best spots for injection ports to guarantee a smooth, controlled lift.
This first step is absolutely vital. It’s what allows us to give you an accurate quote and design a repair that solves your specific problem for good.
Site Preparation on the Day of the Job
When the crew shows up on the day of the job, they get right to work. Forget about a huge, messy construction zone. The setup for foam injection is surprisingly neat and self-contained. The main piece of equipment is a specialized truck or trailer that holds all the polyurethane foam, pumps, and hoses.
Our technicians will park where they can easily run a long hose to the repair area. We're careful to protect your landscaping and property, making sure the work zone is clear and safe before any drilling starts. Best of all, there’s no need for heavy equipment like excavators or concrete mixers that can tear up your lawn.

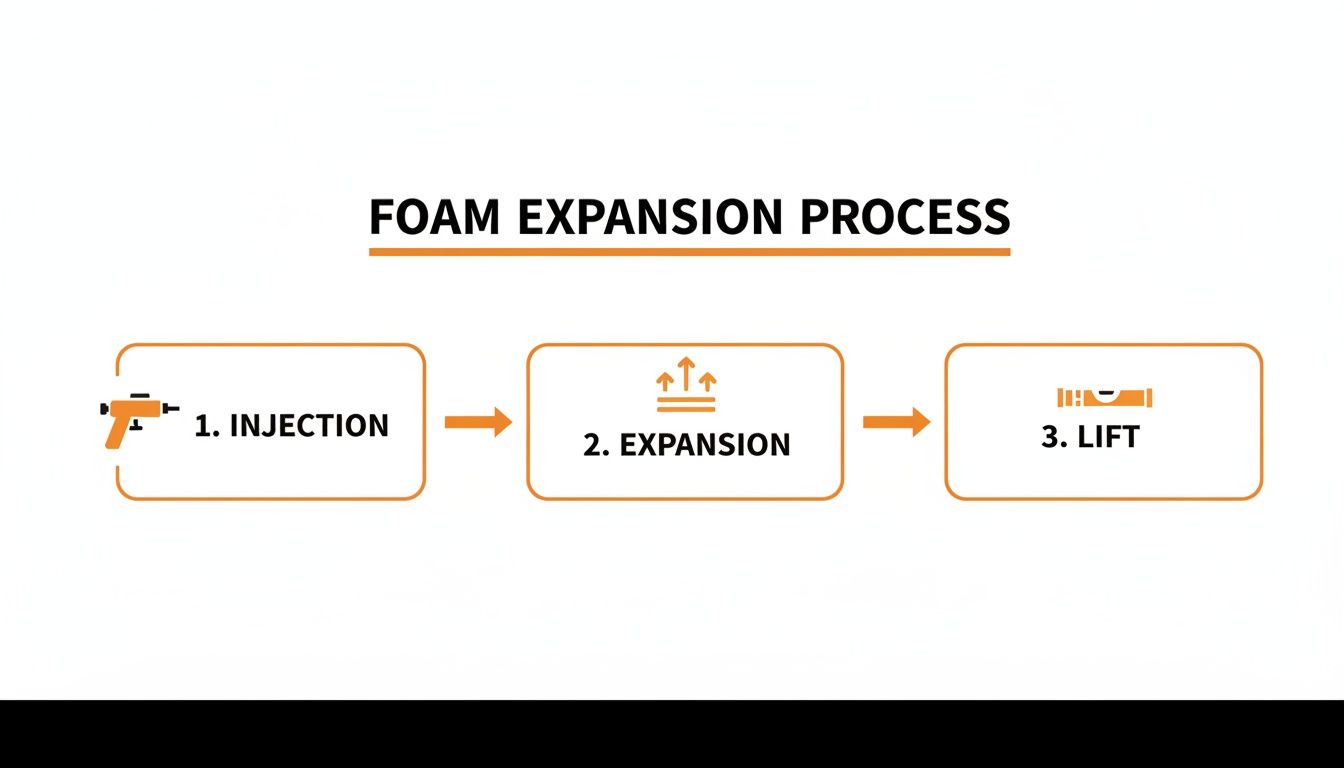

This diagram shows what’s about to happen right below the surface.
It’s a great visual for understanding how a simple liquid becomes a powerful lifting force in just seconds.
The Injection and Precision Lifting Process
With everything prepped, the real work begins. This is where modern technology and a skilled hand come together to get incredible results.
First, the technicians drill a pattern of small holes through the sunken concrete, following the plan from the initial inspection. These holes are tiny—only about 5/8 of an inch in diameter, or the size of a dime. They’re the only physical mark we leave on the slab.
An injection port is then fitted into each hole, the hose is connected, and the two-part polyurethane liquid is pumped underneath the slab.
This isn't just a "fill it and hope for the best" operation. Our technicians watch the slab's level in real-time, injecting the foam in short, controlled bursts. This gives them surgical precision, often getting the slab level to within a fraction of an inch.
As the two liquids mix and react, the expanding foam first fills any voids and compacts the loose soil underneath. Once that base is solid again, the continued expansion creates the immense pressure needed to gently lift the concrete slab back into place. The team moves from one port to the next, carefully raising the slab until it's perfectly even.
Final Touches and Rapid Return to Use
Once the concrete is level, the job is almost done. The crew removes the injection ports and patches the small drill holes with a concrete mortar that blends right in with your existing surface. After a quick sweep and cleanup, we leave your property looking as neat as we found it.
Maybe the best part of polyurethane foam injection is how fast you can get back to normal. The foam cures to 90% of its final strength in just 15-30 minutes. That means you can walk on your newly lifted patio or sidewalk almost right away. You can even park your car on a repaired driveway that very same day.
How Polyurethane Injection Compares to Other Methods
When you’ve got a sinking or cracked slab, you're suddenly faced with a few different repair options. It’s easy to get overwhelmed. But choosing the right fix isn’t just about patching a problem; it’s about getting a lasting solution that actually makes sense for your property.
Polyurethane foam injection is an incredible tool in our arsenal, but it’s not the only one out there. To help you see the full picture, let's put polyurethane foam injection concrete lifting side-by-side with two other common methods: traditional mudjacking and structural piers. We'll break down how they really compare on disruption, cost, and long-term results right here in DFW.
How Foam Stacks Up Against Traditional Mudjacking
Mudjacking, sometimes called slab jacking, has been around for a long time. It involves pumping a heavy slurry made of mud, cement, and sand under a slab to push it back up. It gets the job done, but it’s a world away from how modern foam injection works.
Weight & Materials: The biggest difference is the weight. A mudjacking slurry is heavy, weighing 100-140 pounds per cubic foot. That's a lot of extra weight to put on our already weak North Texas soils, which is often what caused the slab to sink in the first place. High-density polyurethane foam, on the other hand, weighs only 2-4 pounds per cubic foot. It fixes the problem without adding to the burden.
The Mess & Disruption: To pump that thick slurry, mudjacking crews have to drill large holes—about 1.5 to 2 inches wide—into your concrete. The whole process can be pretty messy, too. With foam injection, we drill tiny, dime-sized (5/8-inch) holes. It’s a clean, contained, and far less invasive process.
Downtime: After a mudjacking repair, you need to let the slurry cure, which can take 24 to 72 hours. You can’t park on your driveway or use your patio until it sets. Polyurethane foam is a different story. It cures to about 90% of its final strength in just 15-30 minutes, so you can get back to your life almost immediately.
Both methods can lift concrete, but polyurethane foam injection concrete lifting does it with less mess, less weight, and less waiting. If you want to learn more about the old-school way, we have a complete guide on what mudjacking is and how it works.
A Different Tool for a Different Problem: Foam vs. Piers
Now, let's talk about piers. Steel or concrete piers aren't really a direct competitor to foam for lifting a simple driveway or patio slab. They are heavy-duty solutions for a much bigger problem: a settling home foundation.
Piers are designed to fix deep-seated foundation issues by transferring the entire weight of your house off the unstable soil and onto solid bedrock deep underground. Foam injection, however, works by lifting a slab and compacting the soil directly beneath it. They are tools for two completely different jobs.
Think of it this way: if your pool deck has a sunken corner, foam is the perfect, precise tool to lift it back into place. But if your whole house is shifting and you have major cracks running up your brick walls, that's a job for piers.
One isn't better than the other—it's all about using the right tool for the job. Trying to fix a settling foundation with foam won't work, and using expensive piers to lift a small sidewalk slab would be major overkill. That's why an honest, professional assessment is so important to figure out what you're really dealing with.

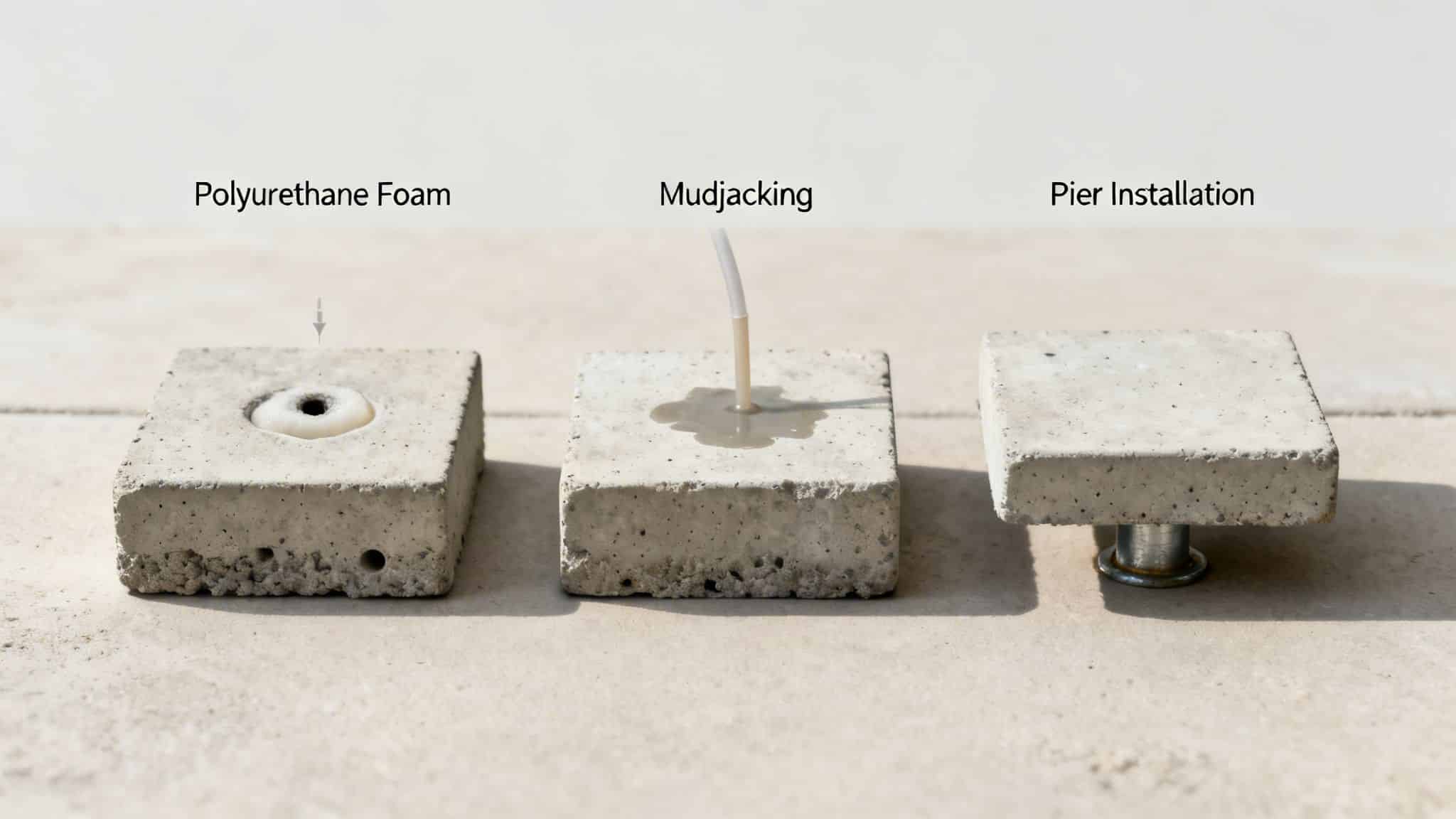

Concrete Lifting Method Comparison: Polyfoam vs Mudjacking vs Piers
To make things even clearer, here’s a simple table that sums up the key differences between these three approaches.
| Factor | Polyurethane Foam Injection | Mudjacking (Slab Jacking) | Piers (Steel/Concrete) |
|---|---|---|---|
| Primary Use | Lifting and stabilizing slabs (driveways, patios, pool decks, interior floors). | Lifting and stabilizing slabs, similar to foam. | Deep foundation stabilization for entire structures. |
| Material | Lightweight, high-density polyurethane foam. | Heavy slurry of mud, cement, and sand. | Steel or concrete pilings driven to bedrock. |
| Hole Size | Tiny, dime-sized (5/8-inch). | Large, golf ball-sized (1.5-2 inches). | Requires significant excavation around the foundation. |
| Project Time | Typically a few hours; slab is usable same day. | Often a full day; cure time is 24-72 hours. | Multi-day project involving excavation and heavy equipment. |
| Long-Term | Creates a permanent, waterproof, stable base that won't degrade. | Can shrink, crack, or wash out over time, potentially requiring future repairs. | Provides a permanent foundation fix by anchoring to stable soil. |
As you can see, each method has its place. For most slab-on-grade issues like driveways, sidewalks, and patios, polyurethane foam offers a modern, efficient, and long-lasting repair. For a settling house, piers are the gold standard.
Breaking Down the Cost of Concrete Lifting in DFW
Alright, let's get right to the question everyone asks first: "What's this going to cost me?" When it comes to polyurethane foam injection concrete lifting, there’s no simple, one-size-fits-all price tag. Think of it less like buying a product off the shelf and more like a specific procedure—the final cost really depends on what’s happening with your unique situation.
While you'll often hear prices quoted per square foot, a good contractor knows that’s just a starting point. We can't just measure the slab and give you a number. We have to figure out what's going on underneath the concrete to understand the true scope of the work.
Key Factors That Determine Your Price
The final price is a combination of the materials needed, the labor involved, and just how complex the job is. Here are the main things that will shape your estimate:
- Size of the Sunken Area: This one's pretty straightforward. A small, dipping corner of your sidewalk is going to require a lot less work and material than an entire two-car driveway that has sunk.
- Depth of the Voids: This is a huge driver of the final cost. If your concrete has only dropped an inch, the empty space underneath might be relatively small. But a slab that’s sunk several inches because of major soil erosion has a massive void that needs to be filled, which naturally requires more foam.
- Total Volume of Foam Required: At the end of the day, the amount of polyurethane foam we have to inject is a primary factor. More foam means a higher material cost, which is exactly why diagnosing the size of the void is so critical for an accurate quote.
The investment in polyurethane foam isn't just about fixing a crack; it's a strategic move to protect your property's value and safety. By getting to the root of the problem—the unstable soil—you're preventing much bigger, more expensive headaches down the road.
Understanding the Role of Labor and Location
A big chunk of the cost is for specialized labor, and for very good reason. Running the injection equipment to get a precise, controlled lift without cracking the concrete takes a ton of training and a steady hand. This isn't a weekend DIY project; it's a technical process that relies on experienced technicians.
In our experience, labor can account for 70% to 80% of the total project cost. The industry-wide price range for this kind of work typically falls between $5 to $25 per square foot. The location of the slab also plays a part. For instance, lifting a basement floor is a more intricate job that might run closer to $20 per square foot, while an easy-to-access sidewalk might average just $5 per square foot. If you want to see more on how these numbers break down, Angi.com offers more insights on polyurethane lifting pricing.
Foam Lifting vs. The Cost of Doing Nothing
It's always tempting to put off a repair when you see the estimate. The problem is, ignoring a sunken slab just lets the underlying issue—usually soil erosion creating empty voids—get worse. What’s a small trip hazard today can easily become a severely broken and unstable slab tomorrow.
In most situations, injecting foam is far more affordable than the main alternative: tearing out and replacing the concrete entirely. A full replacement is messy, disruptive, and much more expensive. Foam lifting gives you a solid, long-term fix for a fraction of the cost, and your surface is ready to use almost immediately.
Of course, foam is for lifting slabs. If the problem goes deeper and affects your home's foundation, a different tool is needed. You can learn more about helical piers for foundation support in our detailed article.
Answering Your Top Questions About Foam Lifting
Even after seeing how it works, you probably still have a few questions. That's perfectly normal. Getting straight answers is the only way to feel good about your decision, so let's tackle the most common questions we hear from homeowners around Dallas-Fort Worth about polyurethane foam injection concrete lifting.
How Long Does Polyurethane Foam Lifting Last?
This is usually the first thing people ask, and for good reason. The short answer? It’s a permanent fix.
The high-density polyurethane foam we use is an inert, synthetic material. Think of it this way: it won't rot, break down, or wash away, no matter what North Texas weather throws at it—from bone-dry droughts to torrential rains. Once it cures under the slab, it's there for good.
The foam essentially creates a new, solid, and waterproof base that supports the concrete and stops any more soil from eroding underneath. So, as long as the original problem (like a hidden plumbing leak or bad drainage) is fixed, you can count on the lift to hold indefinitely.
Can Foam Injection Be Used for My Home's Foundation Slab?
This is a really important distinction to make. Polyurethane foam is an absolute game-changer for lifting concrete that isn't part of your home's main structural foundation. It works wonders on driveways, patios, pool decks, sidewalks, and even interior garage or basement floors.
However, if your home's main foundation slab is sinking, you're dealing with a much bigger structural issue that foam alone can't solve.
Foam injection is a slab-lifting tool, not a house-lifting tool. When the entire structure of your home is settling, you need a heavy-duty solution like steel or concrete piers. These piers are driven deep into the ground to anchor your home's weight on stable bedrock—a completely different job that requires a different approach.
Any trustworthy contractor will be upfront about this and guide you toward the right repair for your specific situation.
Is the Polyurethane Foam Environmentally Safe for My Property?
Yes, absolutely. Once the polyurethane foam cures, it's completely non-toxic and environmentally inert. The chemical reaction that expands and hardens the foam happens very quickly, fully contained right under the concrete slab.
Within minutes, the material is fully cured and stable. It won't leach chemicals into your soil or contaminate the groundwater, making polyurethane foam injection concrete lifting a perfectly safe choice for your yard, family, and pets. In fact, once it sets, the material is about as harmless as a plastic cup.
What Happens if My Concrete Cracks Again After the Lift?
A slab settling again after a professional foam lift is extremely rare. When it does happen, it's almost never because the foam failed. Instead, it’s a sign that a new problem has popped up.
The usual suspects are things like a brand-new water leak from a broken sprinkler line washing away soil, or major changes to the drainage on your property.
A reputable company will always stand behind its work. If you notice new settling, the first step is to figure out the new root cause. After that's addressed, the area can almost always be re-lifted to bring it back to level.
Ready to find out if foam injection is the right solution for your sunken concrete? The team at Black Beard Foundation Repair has the expertise to diagnose your specific issue and provide a lasting, professional repair. Schedule your free, no-obligation evaluation by visiting us at https://blackbeardfoundationrepair.com today.
